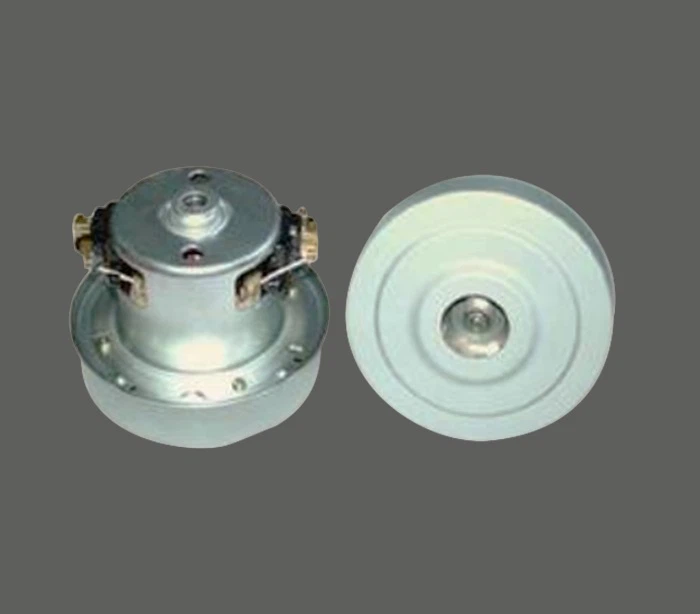

Lub tshuab nqus tsev vacuum 120v lub cev muaj zog
Classification: Universal Tsav
Daim ntawv thov: Cleaner, Sweeper, Aspirator, Plua plav catcher, Plua plav collector, Txoj kev sweeper, nqus tsev vacuum, thiab lwm yam
Lus Cim: Cov motors tuaj yeem tsim raws li cov neeg siv khoom xav tau
1. Khoom Taw Qhia
Motors tau pom muaj kev siv dav ntxiv hauv txhua qhov chaw. Peb muab hom lub cev muaj zog xws li induction lub cev muaj zog thiab iav lub cev muaj zog thiab lwm yam. Peb muaj 20 xyoo ntawm kev paub nyob rau hauv hluav taws xob motors thiab muaj lub koob npe nrov nyob rau hauv cov ntaub ntawv no. Kev txiav txim tau txais tos.
2. Khoom Parameter ntawm AC universal motor
Specification | Qauv | TWS -135 | Tolerance tus nqi | ||||
Qhov voltage (V) | 100 110 120 220 230 240 | 100 110 120 220 230 240 | 100 110 120 220 230 240 | 100 110 120 220 230 240 | / | ||
Ntau zaus (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | / | ||
Cov tswv yim (W) | 1500 | 1600 | 1700 | 1800 | ± 10 feem pua | ||
Max nqus Degree (KPa) | 24.5 | 25.5 | 26 | 26.5 | -5 feem pua | ||
Max Cua Kom Ntau (m3/min) | 2.7 | 2.8 | 2.9 | 3 | -8 feem pua | ||
Temp.Rise (K) | <85 | <85 | <85 | <85 | / | ||
Tsis nrov (dB) | 100 | 101 | 100 | 101 | / | ||
Sparkle Qib | <2 Level | <2 Level | <2 Level | <2 Level | / | ||
Rwb thaiv tsev qib | B | B | B | B | / | ||
Max Eff.(%) | 35 | 35 | 35 | 35 | -10 feem pua | ||
Specification | Qauv | TWS -144 | TWS -144 | Tolerance tus nqi |
Qhov voltage (V) | 220 230 240 100 110 120 | 220 230 240 100 110 120 | / | |
Ntau zaus (Hz) | 50/60 | 50/60 | / | |
Cov tswv yim (W) | 1200 | 1400 | ± 10 feem pua | |
Max nqus Degree (KPa) | 22 | 23 | -5 feem pua | |
Max Cua Kom Ntau (m3/min) | 3.1 | 3.2 | -8 feem pua | |
Temp.Rise (K) | <85 | <85 | / | |
Tsis nrov (dB) | 99 | 100 | / | |
Sparkle Qib | <2 Level | <2 Level | / | |
Rwb thaiv tsev qib | B | B | / | |
Max Eff.(%) | 32 | 32 | -10 feem pua |
3. Khoom Feature Thiab Daim Ntawv Thov ntawm AC universal motor
Piv txwv daim ntawv thov: lub tshuab nqus tsev vacuum
Yam ntxwv: Kev kub ceev, kev pab lub neej ntev, siab torque
4. Ntau cov ntsiab lus ntawm AC universal motor
Lub cev muaj zog thiab cov khoom siv lub cev muaj zog tuaj yeem tsim los ntawm kev thov
Kev cai tsim: Txais tos
5. Khoom tsim nyog ntawm AC universal motor
Daim ntawv pov thawj: CCC.ROHS. CE. UL. Lwm yam
Raws li cov neeg siv khoom xav tau
6.Deliver, Shipping Thiab Pab ntawm AC universal lub cev muaj zog
MOQ: 50 pcs. Raws li tus nqi tsev thiab cov neeg siv khoom xav tau
Lub sij hawm ua pov thawj: 7-15 hnub
Chaw nres nkoj ntawm chaw thau khoom: Txhua qhov chaw nres nkoj hauv Suav teb
Keeb kwm: Guangdong, Suav teb
Kev thauj mus los: Cua lossis hiav txwv, raws li cov neeg siv khoom xav tau
7.FAQ
Q: Dab tsi yog qhov tseem ceeb tshaj plaws ntawm kev xa tawm?
A: Ntxiv nrog rau cov nqi sib tw zoo, tus yuam sij yog cov tshuaj tiv thaiv sai thiab pab pawg xa khoom sai thiab lub sijhawm xa khoom sai.
Q: Yuav ua li cas koj thiaj li tau txais ib daim ntawv qhia tseeb?
A: Tom qab kev soj ntsuam ntawm lub cev muaj zog specifications thiab installation loj, yuav muab ib tug raug hais.
Q: Lub sijhawm lav yog dab tsi?
A: Lub sijhawm lav yog 6 lub hlis ntawm hnub tsim khoom, peb yuav ua lub luag haujlwm rau kev hloov cov nqi thauj khoom thaum lub sijhawm lav. Nws kuj nyob ntawm cov ntsiab lus ntawm peb daim ntawv cog lus.
A: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Feem ntau, 2-4 hnub tom qab them tag nrho, yog tias cov khoom muaj cov khoom muag. Los yog 7-12 hnub yog tias cov khoom tsis nyob hauv Tshuag, nws yog raws li qhov ntau.
Lub cev muaj zog yog ib hom DC lub cev muaj zog. Nws txoj hauv kev ua haujlwm yog los kho qhov tam sim no thiab lub zog hluav taws xob los ntawm kev ua haujlwm ntawm kev ua haujlwm ntawm DC sab nraud, kom lub cev muaj zog tuaj yeem ua haujlwm ib txwm. Series motors muaj qee qhov torque thiab ceev, yog li lawv feem ntau siv nyob rau hauv ntau yam khoom siv tshuab, xws li lub tshuab nqus tsev vacuum. Hauv qab no peb yuav piav qhia yuav ua li cas lub tshuab ua haujlwm hauv lub tshuab nqus tsev.
1. Lub tshuab nqus tsev ua haujlwm li cas
Lub tshuab nqus tsev nqus tsev vacuum yog ib qho khoom siv tu tsev uas siv lub tshuab nqus pa los nqus cov pa hauv, cais cov plua plav thiab lwm cov khib nyiab nqa hauv huab cua los ntawm lub lim, thiab thaum kawg tso tawm cov cua huv los ntawm lub qhov hluav taws xob. Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub tshuab nqus tsev tuaj yeem piav qhia luv luv xws li: huab cua sab nraud nkag mus rau sab hauv ntawm lub tshuab nqus tsev vacuum los ntawm cov cua nkag, thiab tom qab ntawd lim thiab sib cais los ntawm cov ntxaij lim dej thiab cov yeeb nkab nqus, thiab cov cua lim rov qab mus rau lub tshuab nqus tsev. lub cev muaj zog, thiab lub cev muaj zog siv nws tus kheej ceev thiab lub zog tsav cua mus rau hauv lub tshuab nqus tsev vacuum. Thawb nws rau pem hauv ntej thaum plua plav tawm los ntawm qhov chaw nres nkoj tso pa tawm.
2. Lub luag hauj lwm ntawm series lub cev muaj zog hauv lub tshuab nqus tsev vacuum
Nyob rau hauv lub tshuab nqus tsev vacuum, series lub cev muaj zog yog lub hauv paus ntsiab lus uas hloov hluav taws xob hluav taws xob mus rau hauv txhua yam zog. Lub cev muaj zog paub txog kev sib kis ntawm cov tshuab hluav taws xob los ntawm kev sib txheeb ntawm cov rotor thiab stator. Nyob rau hauv lub tshuab nqus tsev vacuum, lub rotor ntawm lub cev muaj zog xa mus rau lub log roj los ntawm lub hwj chim siv, lub zog thiab lwm yam khoom siv, thiab cov roj log yog tsim los ntawm cov khoom siv hluav taws xob sib txuas los tsim cov tshuab nqus tsev vacuum.
3. Qhov zoo ntawm series lub cev muaj zog
Siv series motors hauv lub tshuab nqus tsev vacuum kuj muaj cov hauv qab no zoo:
(1) Kev ua haujlwm siab: Kev ceev ntawm lub tshuab hluav taws xob tuaj yeem ncav cuag tus nqi siab, thiab nws cov kev ua haujlwm siab thiab kev kub ceev muab lub zog ruaj khov rau lub tshuab nqus tsev.
(2) Ib qho yooj yim los tswj: Txij li cov series lub cev muaj zog tuaj yeem kho qhov ua haujlwm tam sim no los ntawm kev ua haujlwm sab nraud thaum nws ua haujlwm, nws tuaj yeem tswj tau qhov ceev thiab lub zog ntawm lub cev muaj zog ntau dua. Qhov no muaj txiaj ntsig zoo hauv kev tswj lub zog nqus ntawm lub tshuab nqus tsev vacuum.
(3) Me me: Piv nrog rau lwm hom motors, series motors muaj qhov me me, yog li lawv tuaj yeem yooj yim sib xyaw rau hauv ntau hom tshuab nqus tsev vacuum.
4. Disadvantages ntawm series motors
Txawm hais tias series motors muaj ntau qhov zoo hauv lub tshuab nqus tsev, kuj tseem muaj qee qhov tsis zoo:
(1) Kev cuam tshuam sab nraud: Txij li lub tshuab hluav taws xob siv hluav taws xob sab nraud los tswj kev ua haujlwm tam sim no thiab lub zog hluav taws xob ntawm lub cev muaj zog, kev ua haujlwm ruaj khov thiab kev ua haujlwm ntawm lub cev muaj zog cuam tshuam rau sab nraud.
(2) Scope ntawm daim ntawv thov: Txij li thaum kev tswj ntawm series motors yog ntau nyuaj thiab yuav tsum tau kev pab los ntawm sab nraud circuits, Scope ntawm daim ntawv thov yog kuj me me.
5. Cov ntsiab lus
Cov saum toj no yog cov ncauj lus kom ntxaws qhia txog kev ua hauj lwm ntawm lub series motor nyob rau hauv lub tshuab nqus tsev vacuum. Lub cev muaj zog series muaj qhov zoo ntawm kev ua haujlwm siab, kev tswj tau yooj yim, thiab me me, thiab nws plays lub luag haujlwm tsis hloov hauv lub tshuab nqus tsev. Txawm hais tias muaj qee qhov tsis txaus, nyob rau hauv cov nqe lus ntawm kev ua tau zoo tag nrho, series lub cev muaj zog tseem yog ib qho tseem ceeb ntawm lub tshuab nqus tsev vacuum.
